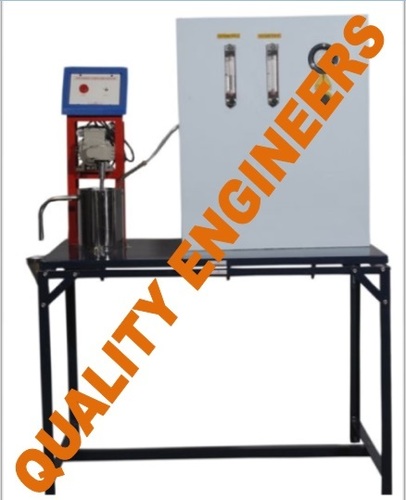

Continuous Stirred Tank Reactor (C.S.T.R) Apparatus”

Technical Description:

In an ideal CSTR (i.e. an ideal steady state flow reactor) the contents in reactor are well mixed and have uniform composition throughout. Thus the exit stream has the same composition as the fluid within the reactor. This type of reactor is known as mixed flow reactor. This set-up is used to study a non-catalytic homogeneous second order liquid phase reaction under ambient condition. The set up consists of two feed tanks through which two reactants are fed to the reactor. Rota meters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rota meter. The compressed air is used for circulation of feed. The CSTR is fitted with stirrer for proper mixing. From top outlet of it samples are collected for analysis. Pressure Regulator, Pressure Gauge and Safety Valve are fitted in the compressed air line.


Learning Objectives/Experiments:

Ø  To study the progress of a suitable Chemical Reaction CSTR.

Ø  To determine the Reaction Rate Constant.

Required for Operation:

Ø  Compressed Air Supply at 1 HP, 2 CFM.

Ø  Water Supply.

Ø  Drain.

Ø  Electricity Supply: 1 Phase, 220 V AC, 0.5 kW.

Ø  Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted.


Technical Specifications:

Ø  Reactor: Material Stainless Steel, Capacity 2 Ltrs (Approx).

Ø  Stirrer: Stainless Steel Impeller and shaft coupled with FHP Motor

Ø  Feed Tank (2Nos.): Material Stainless Steel, Capacity - 20 Ltrs

Ø  Feed Circulation: By compressed air.

Ø  Flow Measurement: Rota meter 2Nos. (one each for Reactants).

Ø  Piping: Stainless Steel and PVC.

Ø  Pressure Regulator: 0-2 Kg/cm2

Ø  Pressure Gauge: Bourdon type 0-2 Kg/cm2

Ø  Stop Watch: Electronic.

Ø  The whole set-up is ingeniously designed and schematically arranged on a powder-coated rigid structure.


Control Panel:

Ø          Standard make on off switch, Mains Indicator etc.

Scope of Delivery:

Ø       1 Self-contained “CONTINOUS STIRRED TANK REACTOR (C.S.T.R)” Apparatus

1 Instruction Manual consisting of experimental procedures, block diagram etc
