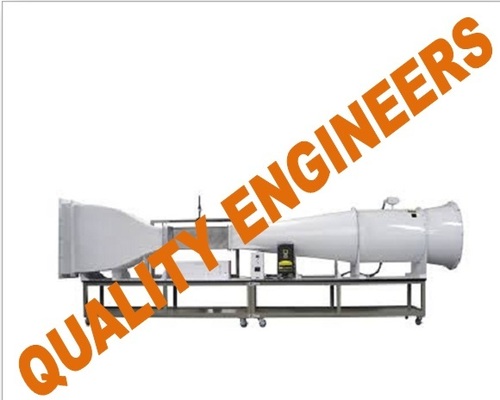

Wind Tunnel

Wind Tunnel
Wind Tunnel
Send Inquiry
Product Code : WT - 01
Brand Name : QUALITY ENGINEERS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

WIND TUNNEL TEST RIG

(Variable Speed with AC Motor)

Technical Description:

WIND TUNNEL has been developed to perform various experiments of aerodynamics and fluid

 flow. This is a open circuit Wind Tunnel provides a region of controlled air flow into which models can be fitted at downstream of working section .The Tunnel consists of bell mouth shaped entry guide the air smoothly into settling chamber and stabilizes the air flow this follows working section for test section where various models can be tested. Test section with acrylic sheet, will be provided for visual observation. Working section is followed by diffuser section which reduces the dynamic pressure at the exit. A fan coupled with motor is used to produce desired wind velocity.

LEARNING OBJECTS/EXPERIMENTATION:

  • To plot speed curve for wind tunnel.
  • T study pressure distribution around (A) aerofoil (B) Cylinder (C) Sphere.
  • To measure lift and drag on aerofoil model.
  • To study the development of boundary layer along a plate in Tunnel.

REQUIREMENT FOR OPERATION:

  •  Electricity Supply : 3Phase, 440V AC, 3 KW
  •  Floor Area 10 x 3.5 m.

TECHNICAL SPECIFICATION:

  • Variable Speed : 3HP Crompton make motor with Speed Controller
  •  Type : Open Type Wind Tunnel.
  •  Test Section : 250 x 250 x 1000 mm.
  •  Blower : Compatible Capacity
  •  Air Velocity : Maximum 30 m/s (in Test Section).
  •  Digital Force Indicator : For Lift and Drag force
  •  Multiple Manometer : 0-40° inclination with vertical axis.
  •  U Tube Manometer : Length 500 mm.
  •  Inclined manometer : 300 mm
  •  Pitot Static Tube : For Velocity Measurement
  •  Micro-Pitot Tube : For Boundary Layer Experiment
  •  An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provide along with the Apparatus
  • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
  • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
Control Panel:

Standard make on/off switch, Mains Indicator etc.

Scope of Delivery:

  • 1 Self-contained WIND TUNNEL TEST RIG Apparatus
  • 1 Instruction Manual consisting of experimental procedures, block diagram etc.
Trade Information
  • FOB Port
  • Chandigarh
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID)
  • Supply Ability
  • 10 Per Month
  • Delivery Time
  • 30 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • Material will be packed in safe carton
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001 : 2015 Certified.
