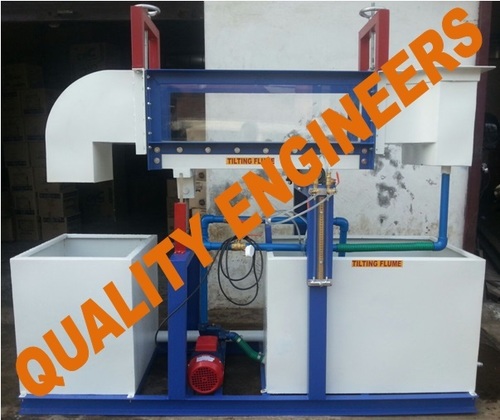

Tilting Bed Flow Channel

Tilting Bed Flow Channel
Tilting Bed Flow Channel
Product Code : QHD - 57
Brand Name : Quality Engineers
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

“TILTING BED FLOW CHANNEL”


Technical Description:
This apparatus consists of a Flow channel. Channel is fabricated from transparent Toughened Glass and Stainless Steel together. The equipment is designed to study the various phenomenon of flow with the help of various types Of blocks, gates, weirs, and other many types of accessories (Optional). The channel section is transparent by which user can observe the various flow patterns of fluid in the channel and photographs can be taken. These glass panels are sealed with the stainless steel bed. This channel is floor mounted. Instrument rail is provided along the entire working length of the flume. A scale is provided along with the rail. A pointer gauge is provided to measure the depth of flow, that can move on the rail.
At the inlet of the flume an inlet tank with stilling and smoothing device is provided for obtaining the excellent velocity profile in the test section. At the discharge side a gate is provided which have an adjustable height. This gate maintains the operating water levels for the flume. This flume is tilted using a jacking system which has one jack. An arrangement has been done to calculate the slop of channel. The flow channel is self-contained re-circulating unit provided with sump tank, centrifugal pump, and control valve. Water is circulated through the channel by centrifugal pump. The pump draws water from sump tank to inlet tank of flume and return back to sump after passing through the channel.

LEARNING OBJECTS/EXPERIMENTATION:

  • To observe the Hydraulic Jump phenomenon.
  • Study of velocity distribution in open channel and to find the correction factor.
  • Study of flow characteristics on a roughened bed (determination of Manning’s Co-efficient).
  • Other experiments can be done as per accessories

REQUIRMENT FOR OPERATION:

  • Water Supply: Initial fill.
  • Laboratory drain.
  • Electricity supply: 220 VAC, 50 Hz, 2 kW max

TECHNICAL SPECIFICATION:

  • Flow Channel
  • Material:Toughened Glass and Stainless Steel
  • Width:150 mm
  • Depth:250 mm
  • Length:5 m
  • Water Circulation:Centrifugal Pump, compatible capacity.
  • Flow Regulation Valve:Hand wheel operated butterfly Valve
  • Pointer Gauge:Provided.
  • Sump Tank:Suitable Capacity.
  • Tanks will be made of Stainless Steel.
  • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be
  • provided along with the Apparatus
  • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.


Control Panel:
Standard make on/off switch, Mains Indicator etc.

Scope of Delivery:
1 Self-contained “TILTING BED FLOW CHANNEL” Apparatus
1 Instruction Manual consisting of experimental procedures, block diagram etc.

Trade Information
  • FOB Port
  • Chandigarh
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID)
  • Supply Ability
  • 10 Per Month
  • Delivery Time
  • 30 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • Material will be packed in safe carton
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001 : 2015 Certified
