Pressure Drop In Two Phase Flow

Pressure Drop In Two Phase Flow
Pressure Drop In Two Phase Flow
Send Inquiry
Product Code : QML - 06
Brand Name : Quality Engineers
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description
    Pressure Drop In Two-Phase Flow



Technical Description:

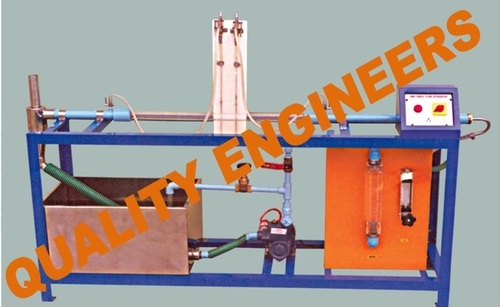

The Apparatus is designed to study the pressure drop in two-phase flow under different patterns. The set-up consists of a test section, made of Borosilicate Glass to visualize the different patterns. A Centrifugal Pump, with flow control valve and by-pass valve, is provided to supply water to the pipe line. At outlet, a Separator is provided to separate the air from water. Two Rotameters one each for Air and Water are provided to measure the flow rates.


Learning Objectives/Experiments

To determine the pressure drop in two phase flow.

To visualize the flow pattern.


Required for Operation:

Compressed Air Supply at 2 Bar, 2.5 CFM.
Electricity 1.5 kW, 220 V, Single Phase.
Water Supply.
Floor Drain.

Floor Area 1.5 x 0.75 m.


Technical Specifications

Test Section: Material Borosilicate Glass Dia : 1”, Length 900mm Approx.
Water Circulation: FHP Pump, Crompton/Sharp make.
Flow Measurement: Rotameters. 2 Nos. (one each for Water & Air).
Air Circulation: By Compressed Air.
Buffer Tank: Material Stainless steel, Suitable Capacity with Safety valve and Pressure Gauge.
Water Tank: Material Stainless Steel/PVC, Capacity 60 Ltrs.
Pressure Drop measurement : By Differential Manometer
Separator: Material Stainless steel, Compatible capacity.

Piping: GI and PVC


Control Panel:

Standard make on off switch, Mains Indicator fuse etc.


Scope of Delivery:


        ·         1 Self-contained Pressure Drop In Two-Phase Flow Apparatus

·         1 Instruction Manual consisting of experimental procedures, block diagram etc.
