Pitot Tube Set-Up

Pitot Tube Set-Up
Pitot Tube Set-Up
Product Code : QHD - 33
Brand Name : Quality Engineers
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

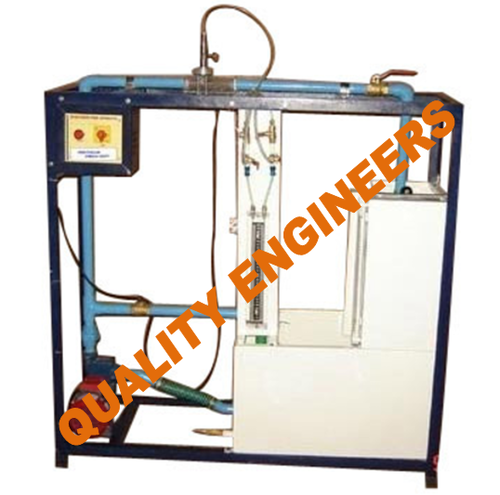

PITOT TUBE SETUP

(Hydraulic Bench Accessory)


Technical Description:

A Pitot tube is used to measure the local velocity at a given point in the flow stress. A Pitot tube of standard design made of copper /Stainless Steel is supplied and is fixed below a vernier scale. The vernier scale is capable to measure the position of Pitot tube in transparent pipe section. The pipe has a flow control valve to regulate the flow. An U-tube manometer is provided to determine the velocity head.

LEARNING OBJECTS/EXPERIMENTATION:


To find the point velocity at the center of a tube for different flow rates of meter and calibrate the pitot tube.
To find the co-efficient of Pitot tube.
To study the flow distribution in a pipe and estimate the ratio of average velocity to maximum velocity at the center of pipe for different flow rates.
To plotvelo city profile across the cross section of pipe for different Reynold's number.

REQUIRMENT FOR OPERATION:

Hydraulic Bench.

TECHNICAL SPECIFICATION:

Pitot Tube               :    Material Copper/SS of compatible size.
Hook/Pointer Gauge :   With Vernier Scale.
Test Section            :    Material Clear Acrylic, compatible to 1 Dia.Pipe.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Control Panel:

Standard make on/off switch, Mains Indicator etc.

Scope of Delivery:

1 Self-contained Pitot tube set up Apparatus
1 Instruction Manual consisting of experimental procedures, block diagram etc.


Trade Information
  • FOB Port
  • Chandigarh
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID)
  • Supply Ability
  • 10 Per Month
  • Delivery Time
  • 30 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • Material will be packed in safe carton
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001 : 2015 Certified
