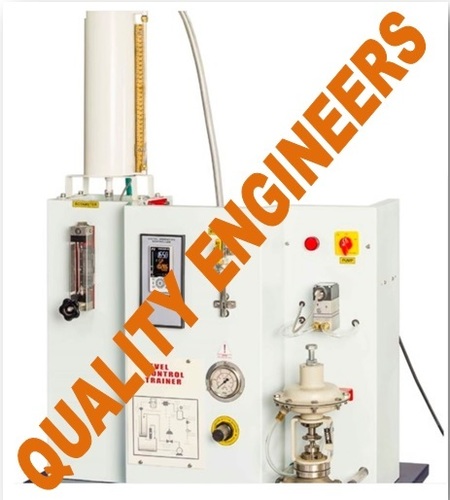

Level Control Trainer

Level Control Trainer
Level Control Trainer
Product Code : QPC - 02
Brand Name : Quality Engineers
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

LEVEL CONTROL TRAINER



Technical Description:



The setup consists of a process tank fitted with scale in which water enters through a Pneumatic control valve. Water is pumped to process tank from the sump tank by means of a centrifugal pump. The level transmitter is fitted in the process tank. The level of water in process tank is sensed by the transmitter and communicated to the digital indicating controller. This measured variable is compared with the Set Point by controller and output is generated and given to I/P converter, which in turn supply the 3-15 Psig pressure to vary the opening of the Pneumatic control valve to eliminate the error observed. As the opening of pneumatic control valve varies, the level in the Process Tank gets effected. This process goes on until the Set Point target is achieved. A ball valve is also provided in the process tank to disturb the system and to observe the effect of disturbance. The drain and overflow of the process tanks returns in the sump tank, hence the system operates in close circuit. These units along with necessary piping are supported in a well-designed housing and are fixed on base plate. The process parameter is controlled through Computer by micro-processor Controller (SCADA Model) by manipulating water flow to the process tank. The present set-up is completely computerized controlled. The Digital Indicating Controller have a facility to interface the system with computer which enables to change the PID parameters using computer.



LEARNING OBJECTS/EXPERIMENTATION:

Ø  To study the open loop or manual control

Ø  To study the proportional control

Ø  To study the two mode (P+I) control

Ø  To study the two mode (P+D) control

Ø  To study the three mode (PID) control

Ø  To study the tuning of controller (Open loop method) using Zeigler-Nichols method.

Ø  To study the stability of the system using the BODE PLOT.

Ø  Auto Tuning



REQUIREMENT FOR OPERATION:

Ø  Water Supply.

Ø  Compressed Air Supply: 1 CMH at 3 BAR.

Ø  Electricity supply: 1 Phase, 220 VAC.

Ø  Computer: Pentium IV, with CD Drive, Windows XP version XP pre-loaded. One RS 232 Serial communication port free for interfacing unit.

Ø  Table for Setup support



TECHNICAL SPECIFICATION:

Level Transmitter

:

Range 0-300 mm, Capacitance Type, Output 4-20 mA

Process tank

:

Material SS/Glass/Acrylic with Scale. Capacity 2 Ltrs approx.

Water Tank

:

Material Stainless Steel, Capacity 10 Ltrs.

Water Circulation

:

FHP Pump. Tullu/Champion make.

Flow Measurement

:

Rotameter.

Control valve

:

Compatible capacity with pneumatic actuator.

I/P converter

:

Input 4-20mA, Output 3-15 PSIG.

Pressure Regulator

:

0-2 kg/cm².

Pressure Gauge

:

Bourdon type, 0-2 kg/cm²

Piping

:

Size ¼â€

Interfacing unit

:

For input-output communication with auto/manual facility

Micro-processor Controller

:

PID Setting, auto tuning, fully programmable with serial





communication

Software

:

For experimentation, PID control, Data logging, trend plot, offline





analysis and printing.

Ø

Instruction Manual

:

An ENGLISH instruction manual will be provided along





with the Apparatus

Ø  The whole unit is assembled rigidly on a base plate.



Control Panel:

Ø  Standard make on/off switch, Mains Indicator etc.



Scope of Delivery:

Ø  1 Self-contained LEVEL CONTROL TRAINER Apparatus

Ø  1 Instruction Manual consisting of experimental procedures, block diagram etc.

Trade Information
  • FOB Port
  • Chandigarh
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID)
  • Supply Ability
  • 10 Per Month
  • Delivery Time
  • 30 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • Material will be packed in safe carton.
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001 : 2015 Certified.
