Double Stage Air Compressor Test Rig

Double Stage Air Compressor Test Rig
Double Stage Air Compressor Test Rig
Send Inquiry
Product Code : QHD - 55
Brand Name : Quality Engineers
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

DOUBLE STAGE AIR COMPRESSOR TEST RIG

Technical Description:

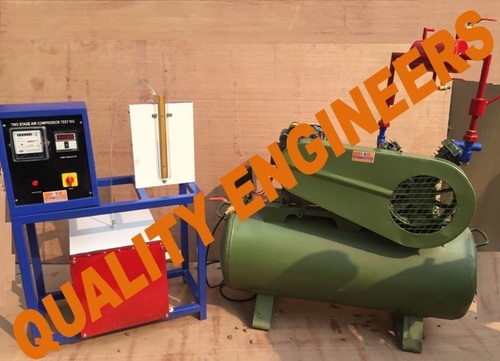

Two Stage Air Compressor Test Rig consists of a double Stage reciprocating type air compressor driven by 2 HP Motor through a belt. The outlet of the air compressor is connected to reservoir (Tank) and suction is connected to Another air tank with a calibrated orifice plate and a water Manometer. Bellow is fitted on one side of the air tank to Regulate the flow. Temperature of inlet air, after single Compression, inlet and outlet of second compression and Pressure in reservoir and at intermediate stage can be measured by Temp. Sensors and gauges.

LEARNING OBJECTS/EXPERIMENTATION:

 To calculate the volumetric efficiency.

 To calculate isothermal Horse Power.

 To calculate compression ratio.

REQUIRMENT FOR OPERATION:

Electricity 2 kW, 220V AC, Single Phase.

 Floor Area 2.5 x 1.25 m.

TECHNICAL SPECIFICATION:

  • Compressor :  Double Stage
  • Double Cylinder, Make: Kirloskar Capacity 6.9 CFM max.
  • Working Pressure:  Max. 7 kg/cm
  • Motor    :  2 HP Crompton/Standard make, Swinging Field type
  • Spring balance  :   10 kg, Dial type
  • Flow measurement  : Orifice meter with Manometer
  • Temperature measurement:  RTD PT-100 type sensor (4 nos.)
  • Air tank :Capacity 150 Ltrs. with safety valve, shut off valve,
  • Pressure gauge:  Bourdon Type.
  • Control Panel Comprises of:
  • RPM measurement: RPM Indicator with Proximity sensor.
  • MCB  : For overload protection
  • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
  • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Control Panel:

Standard make on/off switch, Mains Indicator etc.

Scope of Delivery:

1 Self-contained DOUBLE STAGE AIR COMPRESSOR TEST RIG Apparatus

1 Instruction Manual consisting of experimental procedures, block diagram etc.
