Centrifugal Blower Test Rig” (Variable Speed with DC Motor)

Centrifugal Blower Test Rig” (Variable Speed with DC Motor)
Centrifugal Blower Test Rig” (Variable Speed with DC Motor)
Product Code : QHD - 51
Brand Name : Quality Engineers
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

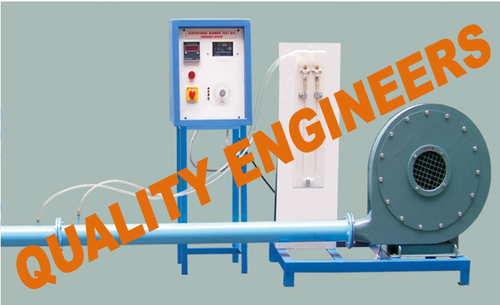

CENTRIFUGAL BLOWER TEST RIG

(Variable Speed with DC Motor)


Technical Description:


This equipment comprises of a FD Centrifugal Blower coupled to a Motor. Three interchangeable impellers with forward, backward and radial vanes are provided with the test rig. A Pitot tube is provided in the delivery line of blower for static Power input to the DC Motor is varied by means of a Thyristor controlled DC Drive to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Blower.

LEARNING OBJECTS/EXPERIMENTATION:

  • To study the effect of forward curved, back curved and radial curved impeller.
  • To find out the discharge, head and efficiency of the Centrifugal Blower.
  • To plot the graph Efficiency Vs Discharge
  • To plot the graph Discharge Vs Head

REQUIREMENT FOR OPERATION:

  • Electricity 1 KW, 220V AC, Single Phase.
  • Floor Area 2.5 x 0.75 m.

TECHNICAL SPECIFICATION:

  • Variable  Speed : DC motor with Thyristor controlled DC Drive for variable speed.
  • Blower : Centrifugal, Forced Draft Type
  • Impeller (3 Nos.):Forward Curved, Backward Curved & Radial Curved
  • Pitot Tube (with manometer) : For Static, Dynamic & Differential Pressure measurement.
  • Stop watch: Electronic
Control Panel Comprises of:
  • Standard make On/Off Switch, Mains Indicator, etc.
  • Energy measurement: Electronic Energy meter, L&T make.
  • RPM measurement: Digital RPM Indicator with Proximity sensor.
  • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
  • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.


Control Panel:
Standard make on/off switch, Mains Indicator etc.

Scope of Delivery:
1 Self-contained CENTRIFUGAL BLOWER TEST RIG Apparatus
1 Instruction Manual consisting of experimental procedures, block diagram etc.
