Air Conditioning Trainer

Air Conditioning Trainer
Air Conditioning Trainer
Product Code : ACT 12
Brand Name : QUALITY ENGINEERS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

“AIR CONDITIONING TEST RIG”

Technical Description:

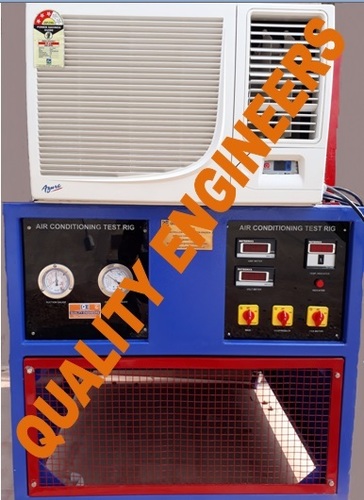

The Air Conditioning Test Rig unit is required to conduct experiments and demonstrate the process of cooling of atmospheric air. The unit will be fitted with all instruments facilities so that temperature, pressure etc. may be measured at different points in the air conditioning system.

LEARNING OBJECTS/EXPERIMENTATION:

  • To study the Vapour Compression air conditioning cycle.
  • To Calculate Co-efficient of performance- (COP) by the use of P-H diagram.
  • REQUIRMENT FOR OPERATION:
  • Electric supply Single Phase, 220 V AC, 50 Hz., 10 Amp.
  • Floor area :  2 m x 1m

TECHNICAL SPECIFICATION:

  • Compressor: Hermitically sealed compressor.   Capacity 1 Ton, Kirlosker make.
  • Condenser : Air cooled compatible to  1 Ton compressor
  • Condenser Cooling fan: Compatible capacity with permanent lubricated motor.
  • Pressure Gauges: 2 Nos.
  • Evaporator: Compatible to 1 Ton, made of copper tube and aluminium fins fitted with compatible capacity fan.
  • Safety Control: over load and over current protection for Compressor with Time delay circuit.
  • Expansion Device: Capillary Tube compatible capacity.
  • Temperature Sensor: RTD PT-100 Type.
  • Temperature Measurement: Digital Temperature Indicator with multi-channel switch.
  • Instruction Manual : An ENGLISH instruction manual will be provided along with the Apparatus
  • All Other accessories like Hand shut off valves, filter drier and Thermostat, Pressure gauges will be provided.
  • All the accessories will be mounted as rigid base frame made of M.S. and it will be powder coated.

Control Panel:

Standard make on/off switch, Mains Indicator etc.

Scope of Delivery:

1 Self-contained “AIR CONDITIONING TEST RIG” Apparatus

1 Instruction Manual consisting of experimental procedures, block diagram etc.
